8D HOSE POLYESTER DOUBLE JACKET SUPPLY HOSE
Call for Pricing
Rugged and quality-built to meet NFPA 1961 Standard requirements, the portable 8D is the essential municipal-grade, double jacket attack handline hose.
Description

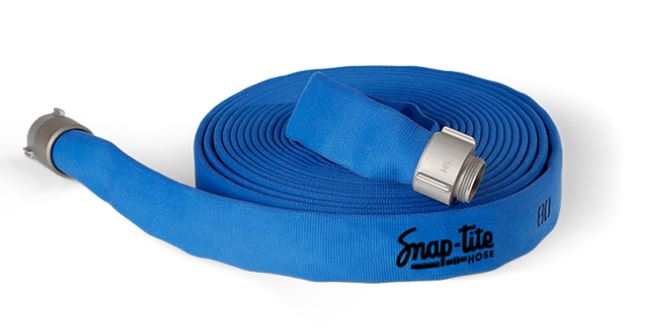

8D HOSE POLYESTER DOUBLE JACKET SUPPLY HOSE
Rugged and quality-built to meet NFPA 1961 Standard requirements, the portable 8D is the essential municipal-grade, double jacket attack handline hose. The lightweight Ethylene Propylene Diene Monomer (EPDM) rubber liner creates consistent flow and is manufactured to a service test pressure of 400 psi to handle the toughest fireground challenges. It boasts a wide temperature range – capable of being used at a mine in Alaska or a construction site in Arizona – which helps earn 8D its reputation as the ultimate multi-purpose hose.

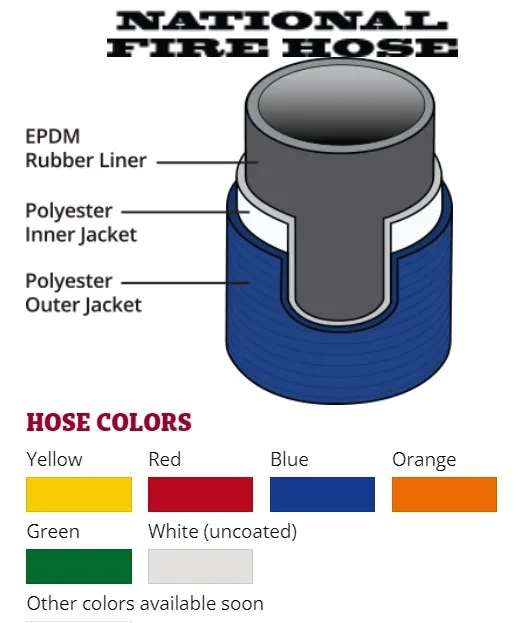

- Sturdy. Double jacket, rubber lined hose made from 100% high tensile strength ring-spun polyester yarn with a lining of extruded EPDM. Excellent for tough applications such as construction sites, mines and industrial firefighting.
- Reliable. The outside jacket utilizes a tight weave that is less likely to “catch” while dragging through the site and also helps to reduce kinking at low pressures, keeping the flow constant.
- Extra Durable. Optional Dura-Cote™ treatment greatly increases abrasion, heat, flame and petrochemical resistance while virtually eliminating water pick-up. When treated, 8D is protected from mildew and no drying is required.
- Flexible. Hose remains flexible to temperatures as low as -40°F (-40°C) and is highly resistant to ozone and oxidation.
- Certified. Manufactured in accordance with NFPA 1961 Standard, latest edition within our ISO-9001 certified quality assurance system.
HOSE SIZING AND SPECIFICATION
| SIZE | SERVICE TEST | PROOF TEST | BURST | WEIGHT (FOR 50′ COUPLED) |
FLAT WIDTH | BOWL SIZE | CERTIFICATION AVAILABLE |
|---|---|---|---|---|---|---|---|
| IN | PSI (kPa) | PSI (kPa) | PSI (kPa) | LBS (KG) | IN | IN | |
| 1″ | 400 (2760) | 800 (5515) | 1200 (8275) | 13 (5.9) | 2.10″ | 1 1/2“ | |
| 1 1/2“ | 400 (2760) | 800 (5515) | 1200 (8275) | 15 (6.8) | 2.80″ | 1 15/16“ | |
| 1 3/4“ | 400 (2760) | 800 (5515) | 1200 (8275) | 18 (8.2) | 3.20″ | 2 1/8“ | UL, ULC |
| 2″ | 400 (2760) | 800 (5515) | 1200 (8275) | 20 (9.1) | 3.70″ | 2 1/2“ | |
| 2 1/2“ | 400 (2760) | 800 (5515) | 1200 (8275) | 27 (12.2) | 4.50″ | 3″ | UL, ULC |
| 3″ | 400 (2760) | 800 (5515) | 1200 (8275) | 33 (15) | 5.30″ | 3 9/16“ |
As per NFPA 1961 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.
