GLADIATOR (FG) HOSE

Call for Pricing

POLYESTER JACKET WITH EXTRUDED-THROUGH-THE-WEAVE NITRILE TUBE ATTACK HOSE

Request a Quote SKU: PD Categories: ,
Snap-tite Hose

Description

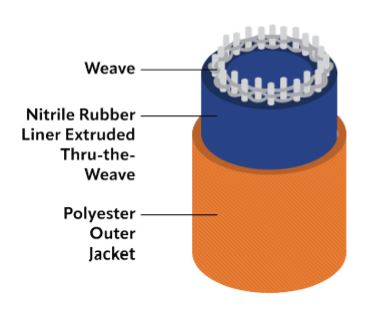

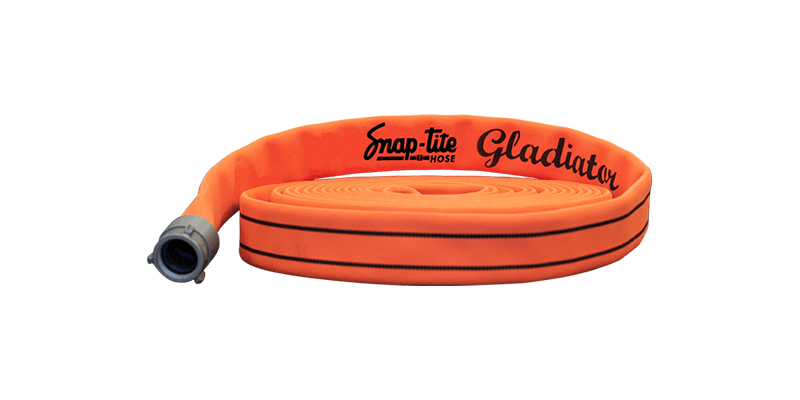

The Gladiator Classic is a premier hose which has a polyester outside jacket that encompasses a very durable nitrile-through-the-weave inside liner. Built to last, the rugged hose is constructed with extruded through-the-weave nitrile rubber liner with a durable outer polyester jacket providing incredible strength and long-lasting performance. The Gladiator performs well at high or low pressures, has a smooth and enhanced waterway for better flows and less kinking than other products on the market. Both the nitrile-through-the-weave inner lining and outer jacket are proudly made at our factories in Pennsylvania, USA.
  • Innovative Design. When subjected to a static pressure of 100 PSI shall be capable of safely with-standing a surface temperature of 1200º F (648º C) applied by a hot metal cube for a minimum of 45 seconds without burstin. Additionally, the Service Test Pressure is 500 PSI, making it a very durable and reliable hose.
  • Durable. Optional Dura-Cote™ treatment extends the life of the hose and greatly increases abrasion, heat, flame and petrochemical resistance while virtually eliminating water pick-up. Also protects from mildew and no drying is required.
  • Flexible. Remains flexible to temperatures as low as -30°F (-35°C) and is highly resistant to ozone and oxidation. Kink resistance exceeds that of lightweight jacketed hose.
  • Versatile. Suitable for use with CAFS and foam solutions.
  • Certified. Manufactured in accordance with NFPA 1961 Standard, latest edition within our ISO-9001 certified quality assurance system.

HOSE SIZING AND SPECIFICATION

SIZE SERVICE TEST PROOF TEST BURST WEIGHT
(FOR 50′ COUPLED)		 BOWL SIZE
IN PSI (kPa) PSI (kPa) PSI (kPa) LBS (KG) IN
1 3/4“ 500 (3447) 1000 (6895) 1500 (10342) 23 (10.43) 2-1/4”
2″ 500 (3447) 1000 (6895) 1500 (10342) 24 (10.9) 2-15/16”
2 1/2“ 500 (3447) 1000 (6895) 1500 (10342) 35 (15.8) 3″

As per NFPA 1961 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.
