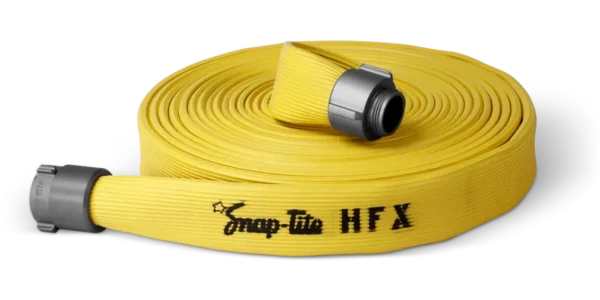

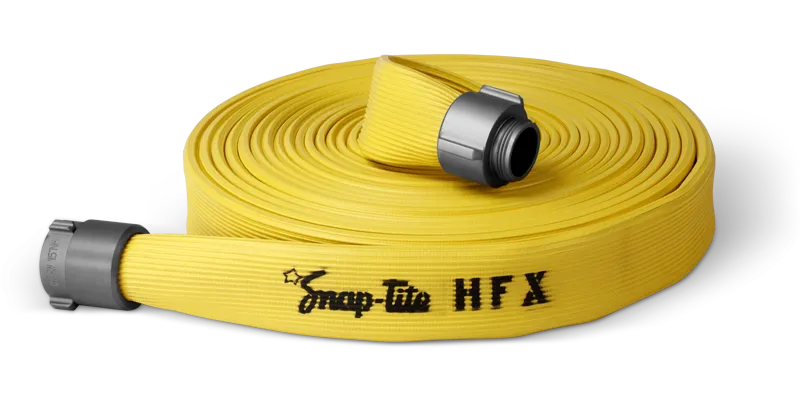

HFX EXTRUDED NITRILE RUBBER ATTACK/SUPPLY HOSE

Call for Pricing

Snap-tite Hose HFX is a nitrile thru-the-weave, rubber covered fire hose that utilizes both polyester and nylon yarn in the reinforcing jacket.

Request a Quote SKU: HFX Categories: ,
Snap-tite Hose

Description

HFX EXTRUDED NITRILE RUBBER ATTACK/SUPPLY HOSE

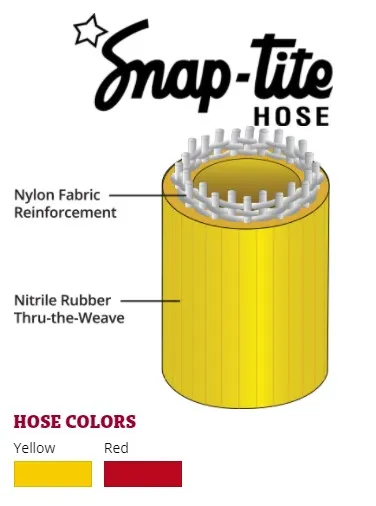

Maneuverable. Packable. Dependable. HFX’s nitrile thru-the-weave, rubber covered hose design utilizes both polyester and nylon 6.6 yarn in the reinforcing jacket. Under pressure, the polyester keeps the hose from “snaking” where the nylon allows for controlled dilation, reducing friction loss and generating higher flow rates. A special rubber compound creates a tough cover that resists heat, abrasion, snags and hot embers, giving you complete confidence on the fireground.
  • Super. Strong. Reinforced with a blend of circular woven, twill weave, polyester and nylon fibers, this interlocking matrix means no adhesives are used. A permanent bond to all warp and filler yarns creates unmatched durability—highly resistant to both contact and radiant heat.
  • Efficient. Extruded construction creates a flexible, maneuverable hose that is also easy to pack.
  • Great Value. Ribs on the cover surface greatly increase abrasion resistance and help provide a long service life.
  • Flexible. Remains flexible to temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation and most chemicals or petroleum products.
  • Versatile. Engineered for attack, supply and soft suction applications.
  • Certified. Manufactured in accordance with NFPA Standard 1961, latest edition within our ISO-9001 certified quality assurance system.

HOSE SIZING AND SPECIFICATION

SIZE SERVICE TEST PROOF TEST BURST WEIGHT
(FOR 50′ COUPLED)		 FLAT WIDTH BOWL SIZE CERTIFICATION AVAILABLE
IN PSI (kPa) PSI (kPa) PSI (kPa) LBS (KG) IN IN
1″ 300 (2070) 600 (4140) 900 (6200) 7 (3.2) 1.75″ 1 3/16“
1 1/2“ 300 (2070) 600 (4140) 900 (6200) 16 (7.3) 2.75″ 1 13/16“ UL, ULC
1 3/4“ 300 (2070) 600 (4140) 900 (6200) 19 (8.6) 3.20″ 2 1/16“ UL, ULC
2″ 300 (2070) 600 (4140) 900 (6200) 21 (9.5) 3.50″ 2 5/16“ UL, ULC
2 1/2“ 300 (2070) 600 (4140) 900 (6200) 28 (12.7) 4.25″ 2 13/16“ UL, ULC
3″ 300 (2070) 600 (4140) 900 (6200) 34 (15.4) 5.00″ 3 3/8“
4″ 230 (1585) 460 (3171) 700 (4825) 48 (21.8) 6.50″ 4 5/16“ UL, ULC
5″ 225 (1550) 450 (3102) 675 (4650) 58 (26.3) 8.20″ 5 5/16“ UL, ULC
6″ 225 (1550) 450 (3102) 675 (4650) 69 (31.3) 9.75″ 6 5/16“

As per NFPA 1961 – The service test pressure is to be 10% greater than the “normal highest operating pressure” at which the hose is expected to be used.
