SHIPS FROM MANUFACTURER

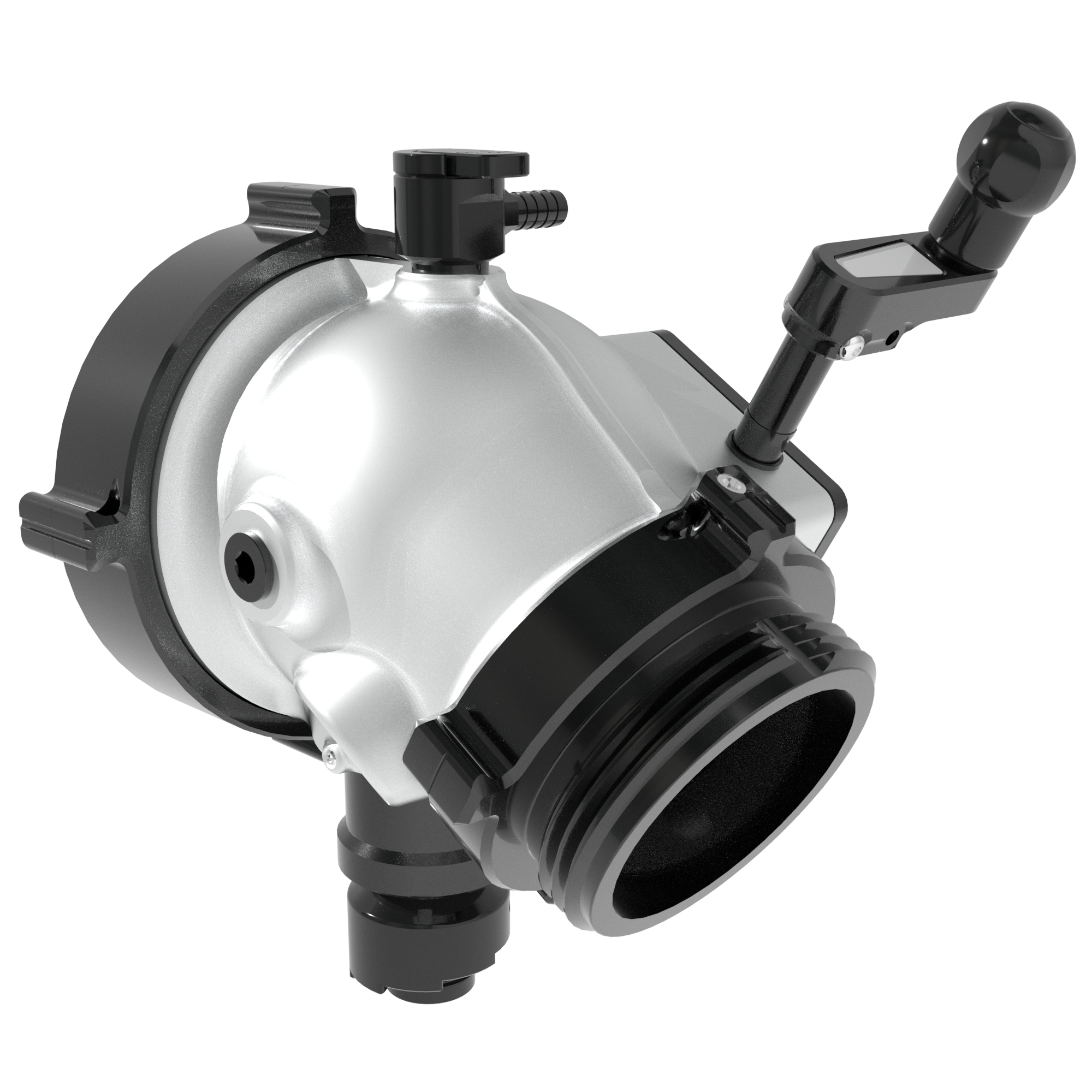

TFT RIGID MALE X SWIVEL ROCKER LUG PRV & BLEEDER

$ 1,759.00

Low-Profile Intake Valve, Top Crank Controls, Rigid Elbow – 6″ NHM Rigid Street-Side, 6″ NHF Swivel Truck-Side, Pressure Relief Valve

SKU: ABD8NX-NX Categories: ,

Description

Compact Form Factor & Dependable Flow Control

The Low-Profile Ball Intake Valve is designed for compact pump panels and confined spaces, offering superior water flow and operational flexibility. These valves come with a variety of configurations to suit specific fire apparatus needs, including swivel and rigid elbow designs, manual top crank controls, and both Storz and NH thread options. The low-profile design makes it ideal for fitting behind roll-up doors, maximizing space on the pump panel while still delivering high-performance water flow. Each valve features an optional adjustable pressure relief valve to prevent overpressure situations, ensuring optimal safety and water control during operations.

Key Features:

  • Low-Profile Design: Allows for installation in confined spaces, perfect for tight pump panels or areas behind roll-up doors.
  • Swivel or Rigid Elbow Options: Available with either swivel or rigid elbow designs to enhance water flow and hose connection flexibility.
  • Top Crank Controls: Manual top crank controls for precise control over water intake and flow.
  • Storz and NH Thread Compatibility: Offers a range of Storz and NH thread configurations to fit multiple apparatus types.
  • Pressure Relief Valve: Optional pressure relief valve helps expel air and regulate system pressure, ensuring safe operation.
  • Rocker Lug Couplings: Secure connections with NH Female and NH Male rocker lugs, ensuring durability in high-pressure situations.
  • Corrosion-Resistant: Constructed from aluminum alloy with a hard coat anodized and powder-coated finish for enhanced corrosion resistance.
  • Multiple Size Options: Available in sizes from 3.5” to 6” to accommodate various water flow requirements.

Specifications
Weight: 15.650 lbs
Color: Silver
Valve Type: Low-Profile
Valve Control Location: Top Crank
Valve PRV Style: Plain Outlet
Valve PRV Location: Bottom Mount
Waterway Size (Met): 93 mm
Waterway Size (Imp): 3.65″
Valve Control Style: Manual Crank
Valve Elbow: Rigid
Valve Flow Direction: Bi-Directional
Valve Inlet Count: Single
Valve Inlet Size (Imp): 6″
Valve Inlet Size (Met): 150 mm
Valve Inlet Type: NH Male
Valve Inlet Style: Male Threads
Valve Inlet Swivel: Rigid
Valve Outlet Count: Single
Valve Outlet Size (Imp): 6″
Valve Outlet Size (Met): 150 mm
Valve Outlet Type: NH Female
Valve Outlet Style: Rocker Lugs
Valve Outlet Swivel: Swivel
