The Great Wall Of Rescue- Grain Rescue Device

Description

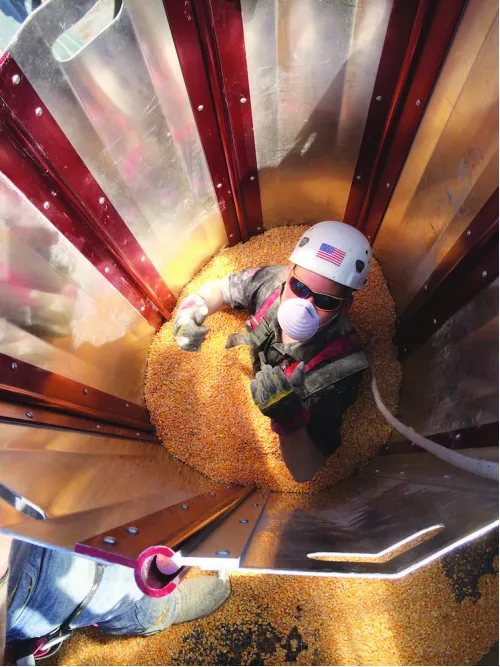

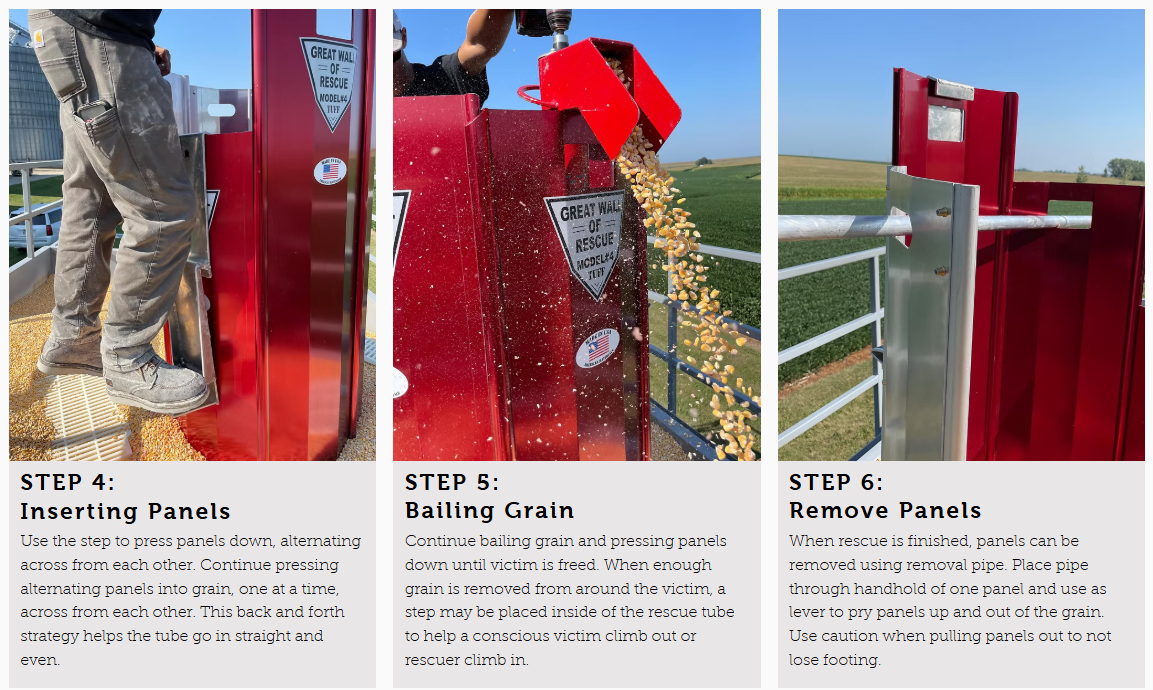

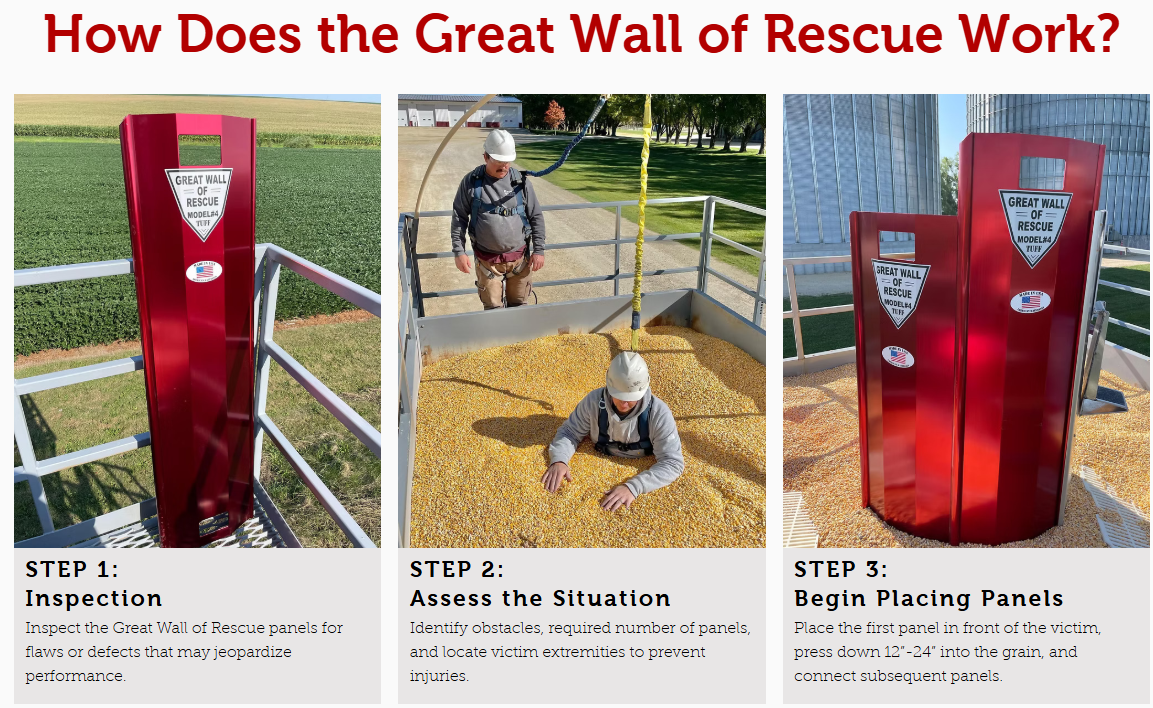

Platforms are provided for a sturdy base for rescuers. The insertion step allows a rescuer to use his own body weight to push sections into grain, as opposed to hammering. The step also can be used to assist victims in climbing out of the grain as they are able. The removal pipe can be used as a support handle for the victim, or to remove the panels after rescue is completed.

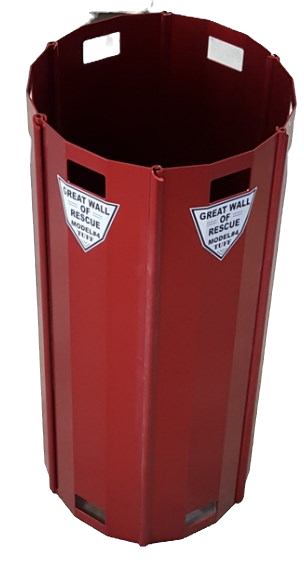

Made of lightweight aluminum, rescuers can easily lift a panel up and join with another. The sleek finish allows the panels to slide easily into grain. Anodized ball/socket joints promote smooth and easy panel connection and are resistant to jamming. The ball/socket joint was specifically designed so that the panels have some range of movement, adding variability to the possible shapes. The bends in the panels along with hinge that runs the entire length of the panel gives the panel added strength and will not cave in on the victim. When the panels are inserted into the grain mass, the grain is removed from around the victim to relieve pressure. Essentially, there are no limits to possible combinations of panels. As long as a ball/socket joint is formed, and there is access to many panels, virtually every rescue scenario could benefit from the use of the Great Wall. The Great Wall should be assembled by three trained first-responders: one for bailing grain, two for building cofferdam. It is not recommended that more than 3 rescuers assist with the installation of the Great Wall in order to avoid complications that may arise (increased pressure on the victim, grain shifting, possible entrapment of rescue workers, etc.) Keep in mind that rescuer body weight is the driving factor in panel insertion.

ACCESSORIES A GREAT WALL SYSTEM CONTAINS:

• 6 PANELS
• 1 STEP
• 1 PIPE
• 4 RESCUER PLATFORMS
• 1 BAG

ADDITIONAL PIECES CAN BE PURCHASED.
